A Whirlpool refrigerator ice maker not working usually comes down to one of four things: a frozen fill tube, a bad water inlet valve, a failed ice maker module, or a shutoff arm stuck in the off position. Most of these you can check yourself in about 20 minutes before you call anyone.
The Whirlpool modular ice maker, explained
Most Whirlpool fridges use the same gray modular ice maker. You’ll find the exact same unit in KitchenAid, Maytag, and Amana models, since they’re all built by Whirlpool. It shows up in side-by-sides and top-freezers alike. That’s good news for diagnosis: the parts and the failure points are the same across all of them.
The module is the gray box on the side of the ice mold. It runs the motor, the heater that releases the cubes, and the shutoff. Two shutoff styles exist. Older units use a wire bail arm, also called a feeler arm, that rises and falls with the ice level. Newer units use an optical sensor. Either way, if the fridge thinks the bin is full, it stops making ice.
French-door Whirlpools are different. The ice maker sits in the fresh-food door, not the freezer, and it has its own small auger and a tighter fill line. Those fail more often from low temps and frozen lines than side-by-side units do.
Start here: check the freezer temperature
The ice maker won’t cycle if the freezer isn’t cold enough. Whirlpool ice makers need the freezer at or below 0 F to release a batch. Set a thermometer in the freezer and give it a few hours. If it reads 10 or 15 F, you have a cooling problem, not an ice maker problem, and the fix is somewhere else entirely.
This is the step people skip, and it’s the most common reason a “broken” ice maker turns out to be fine. If the temp checks out, move on.
Check the shutoff arm or sensor
On bail-arm models, find the wire arm on the side of the ice maker. If it’s stuck in the raised position, the unit reads the bin as full and won’t make ice. Push it down gently. Sometimes a stray cube or a shifted bin holds it up. On optical models, wipe the small sensor windows on each side of the bin. San Diego dust and freezer frost can fog them enough to fool the sensor.
This is a quick DIY check. No tools, no parts.
Look for a frozen fill tube
This is the single most common cause. The fill tube is the small plastic or rubber line that runs water into the back of the ice mold. When the heater that warms the cubes runs weak, or the freezer runs too cold, water freezes in that tube and blocks the next fill. You get a partial batch, then nothing.

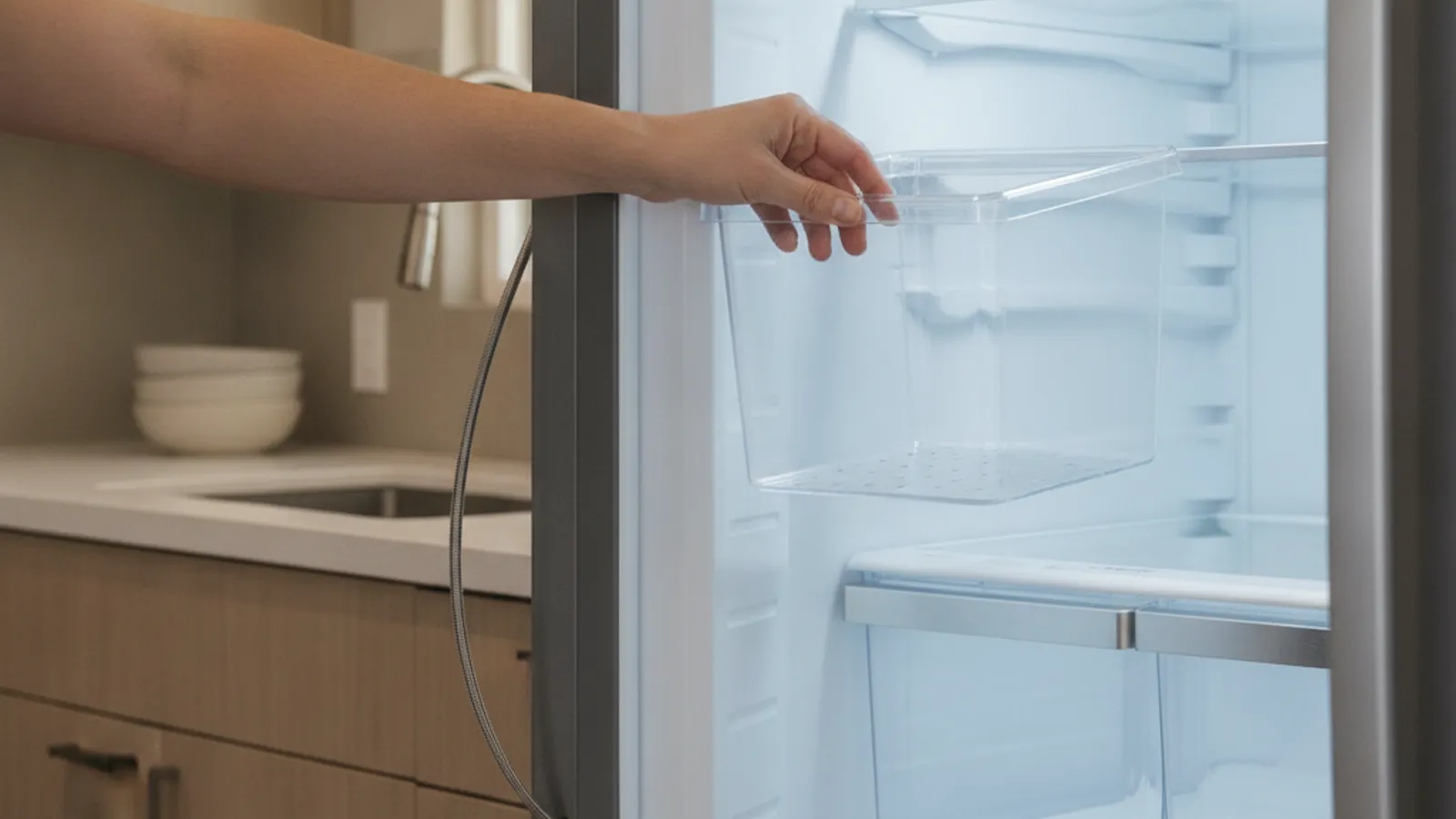

Pull the ice maker bin and look behind the unit for a plug of ice in the fill tube. A hair dryer on low or a cup of warm water will clear it. The catch: if it refreezes within a day or two, the heater or the thermostat in the module is failing, and that’s a parts job. Clearing the tube is DIY. Diagnosing a weak heater is where a qualified technician earns their keep.
Test the water inlet valve
The water inlet valve sits at the back of the fridge, where the supply line connects. It opens for a few seconds each cycle to fill the mold. If it’s clogged or the solenoid is dead, no water reaches the ice maker.
Here’s where San Diego matters. Our water is hard, and the mineral content is high. Over a few years, scale builds up inside the valve screen and along the fill line, choking the flow. A valve that works fine in a soft-water city fails years sooner here. If your fridge made ice fine for a while and slowly tapered off, mineral buildup on the valve is a strong suspect.
Testing the valve means checking water pressure (it needs at least 20 psi) and metering the solenoid for continuity. That’s a job for a professional repair service unless you’re comfortable with a multimeter. For the bigger picture on water-supply failures, our guide on an ice maker not making ice walks through the supply side in more detail.
When it’s the module itself
If the freezer is cold, the arm is down, the fill tube is clear, and water reaches the valve, the failure is in the ice maker module. The motor, the heater, or the control can all die. On most Whirlpool units the whole module is replaced as one part rather than rebuilt. It’s a reasonable swap for a confident DIYer, but matching the right part number to your model matters, and a wrong guess wastes money.
How to reset a Whirlpool ice maker
A reset clears a stuck cycle and is worth trying before you assume the worst. On most bail-arm modules, lift the front cover and find the small button or the two metal test points. Some models reset by raising the feeler arm three times in ten seconds. The cleanest reset is to unplug the fridge for five minutes, then restore power and let it run a full cycle. If it produces ice once, it may have just been jammed.
San Diego hard water and your ice maker
The pattern we see most across the county is slow decline, not sudden failure. Cubes get smaller, the bin fills slower, then it stops. That’s almost always scale from our hard water collecting on the inlet valve and in the fill line. A whole-home softener or an inline filter at the fridge supply slows it down. If your Whirlpool is one of several appliances acting up, our overview of Whirlpool appliance repair in San Diego covers what local water does to these machines over time.
Frequently asked questions
Why is my Whirlpool ice maker not making ice?
Most often it’s a frozen fill tube, a clogged water inlet valve, or a shutoff arm stuck up. Check the freezer is at 0 F first, then work through those three before assuming the module failed.
How do I reset a Whirlpool ice maker?
Unplug the fridge for five minutes, then plug it back in and let it run a full cycle. On bail-arm models you can also raise the feeler arm three times within ten seconds to force a reset.
Why does my Whirlpool ice maker only make a little ice or hollow cubes?
That’s usually low water flow, which in San Diego almost always traces back to mineral scale choking the inlet valve or fill line. A failing valve or low household water pressure causes the same symptom.
When to call us
If you’ve cleared the fill tube and it refreezes, or the valve checks bad, or the module won’t cycle after a reset, it’s time for a real diagnosis. We handle Whirlpool, KitchenAid, Maytag, and Amana ice makers across San Diego County, and we carry the common modules and valves on the truck. See our ice maker repair service for what’s covered. Call us at (858) 988-7787 for a same-day estimate.
